SSD

M.2 NGFF(SATA) SSD

M.2 NGFF(SATA) SSD（B key—ngff  PCI-E X2）

Product Name:	M.2 NGFF SSD
Product Type:	M.2 SATA(B KEY-NGFF)
Product model:	M2-60	M2-120	M2-240	M2-480	M2-1000
Capacity	60GB 64GB	120GB 128GB	240GB 256GB	480GB 512GB	1TB
R&W speed(MB/s)	Read:350 Write:300	Read:480 Write:350	Read:510 Write:410	Read:530 Write:450	Read:590 Write:495

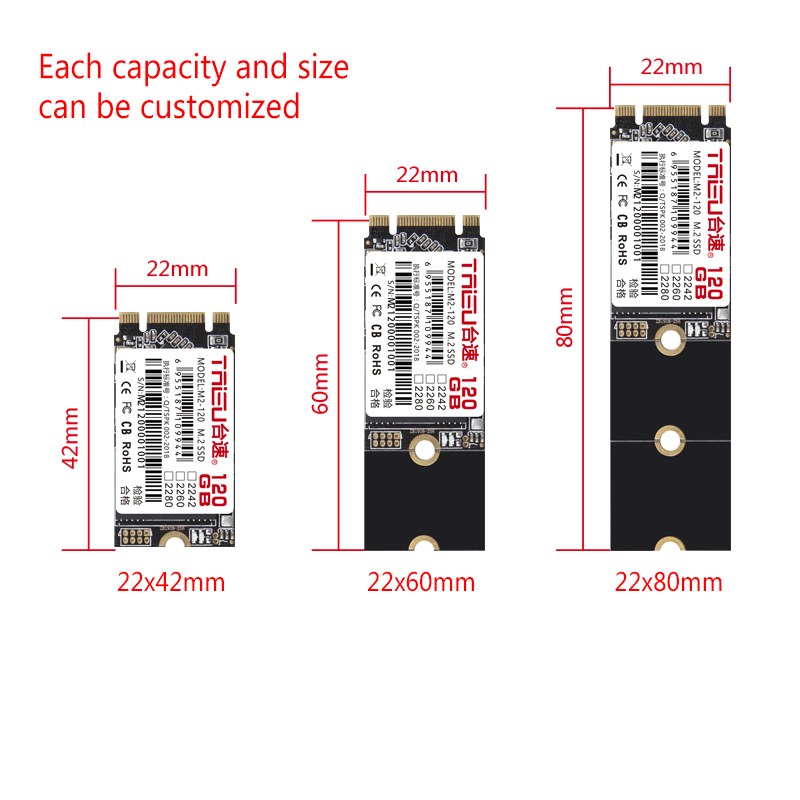

Size	2242mm 2260mm 22*80mm			22*80mm
Control chip	SMI(Silicon Motion)
Flash Type	3D NAND TLC
Interface	M.2 SATA (B key—ngff)
Input Voltage	3.3V±5%
Reliability	MTBF2000000 Hours
Working Temperature	0℃～70℃
Storage Temperature	-45°C-95°C
Application	desktop, notebook, all-in-one machine and mobile hard disk and so on
Warranty	3 years
Certification	CE,ROHS,FCC,TUV,CB

date: hots:2830

Details

Hello, this is TAISU
We believe that confidence always comes
from the outside.We never let up on the
quality of our productsWe use professional
storage technology experience to configure
this brand new SSD product, using 3D NAND TLC chip,
with high-performance SMI (Silicon Motion)
master control chip, all efforts to improve
the performance of every operation.
Performance improves high speed processing
Select original SSD chip particles,
with amazing efficiency and stability,
using SMI master control, reading
speed up to 600M/s, can achieve high
performance, high speed multi-task
processing ability and fast and smooth system boot speed.
High quality and excellent performance
It can be used for desktop, notebook,
all-in-one machine, taking into account
the needs of both work and entertainment,
to improve the office application.
Five reasons to choose us
1.Integrity management, quality assurance,
  products through strict standards testing
2.We are the source of the factory, factory
  direct supply, 15 years of professional
  research and development team
3.3 years of after-sales service guarantee,
   3 years only new not maintenance,
   so that your after-sales more assured.
4.Customized according to your requirements,
  responsible for your product packaging design,
  printing, production, logistics and
  transportation services.
5.Source factory, sufficient supply, order
  below 500PCS,within 3 days delivery.
  More than 500 PCS, delivered within 1 week.
